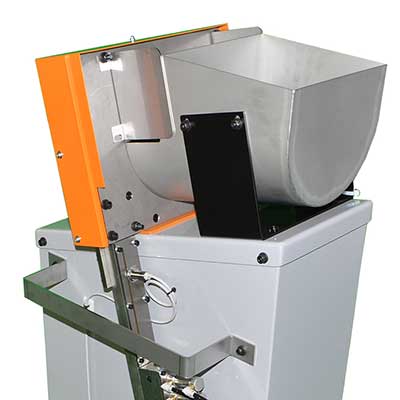

  • Air Rod Feeder


  • * Simple Design | Low Cost | High Performance

  • * Air Wall secures fastner on road extension.

  • * Feeds at steep angles.
Available Nut Type
Square M5〜M16
Hex M5〜M16
●3 Projections　●6 Projections　●Piloted
Round M5〜M16
●3 Projections　●Sealing Projection　●Piloted　●Pilot on Top
Flange M5〜M14
Plate M6〜M12
Diamond Special(Inquire)
Clinch Special(Inquire)



↑page top
Advantages

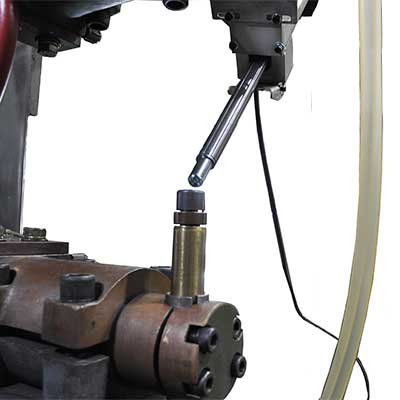

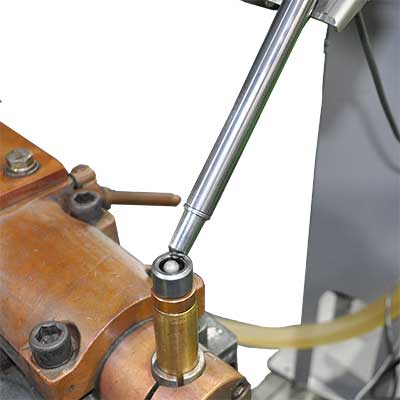

Focus 1 　Holds Nut against Gravity

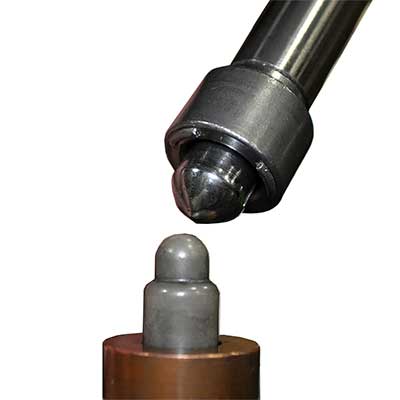

  • Reversed Air flow from Jet Pin keeps nut secure.

  • Consistent in most situations
    • 　(long feed stroke, slow feed, and steeper angles.)

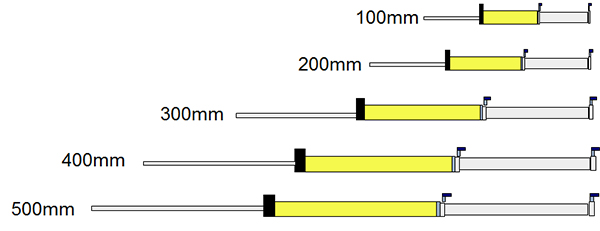

Focus 2 　Feed Stroke Length
  • Variety of Feed Stroke Lengths.
    From 100mm to 500mm.

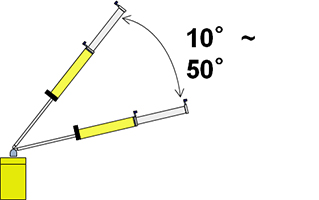

Focus 3 　Wide Feeding Angle
  • 10°~50° feeding angle.
    • feeding angle image

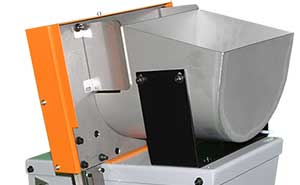

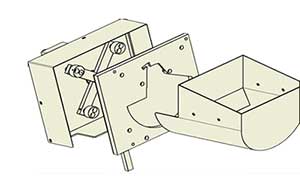

Focus 4 　Magnet Technology
  • Non-vibratory selecting design. Uses rotating magnets to select fasteners quickly and consistently.

    • Magnet sort system

Focus 5 　Small Foot Print
  • Fits narrow spaces.

  • Saves floor space.

Focus 6 　Few consumable parts
  • Recommended Spare Parts

    • 　・Hinge Cover　　・Kick Spring　　・Tubing
↑page top
Related Products

Select Master　　　New Product　
  • Orients nuts before they reach the feed head, regardless of initial orientation.
  • Specifically designed to prevent errors with difficult to feed piloted/sealing nuts.
  • Available for use on other nuts shapes/sizes. Please inquire for more information.
  • 100% successful selection rate.
　Available Feeder Type：　Air Rod Feeder,　New Feeder Mate


Selector MINI
  • Separates selecting unit from control body for more space.
  • Seperated selecting unit can fit into small spaces, or on a welder.
　Available Feeder Type：　Air Rod Feeder,　New Feeder Mate


Optional Products
Rejects fasteners outside of dimensional tolerance.　
Big Hopper　
Hopper Lid with Window　
Hopper Level Sensor 　
